Sugatsune

HES3D-120BL

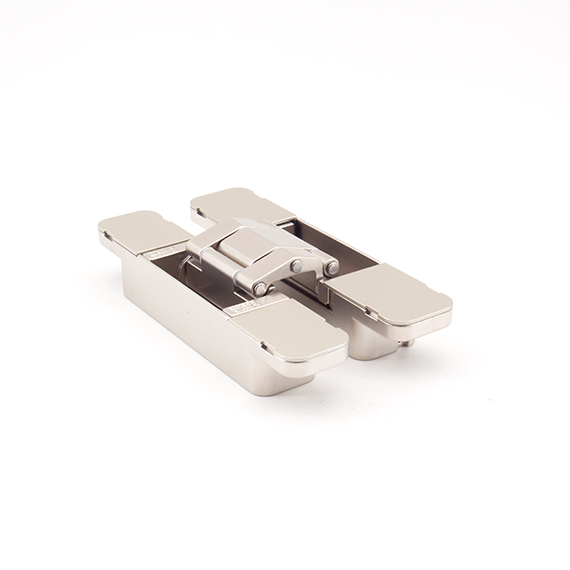

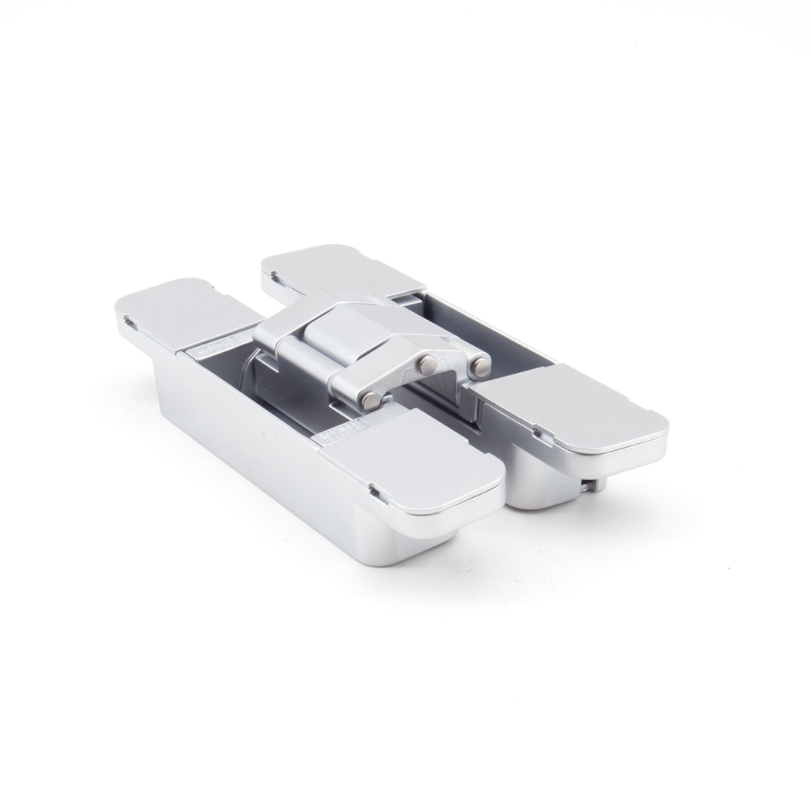

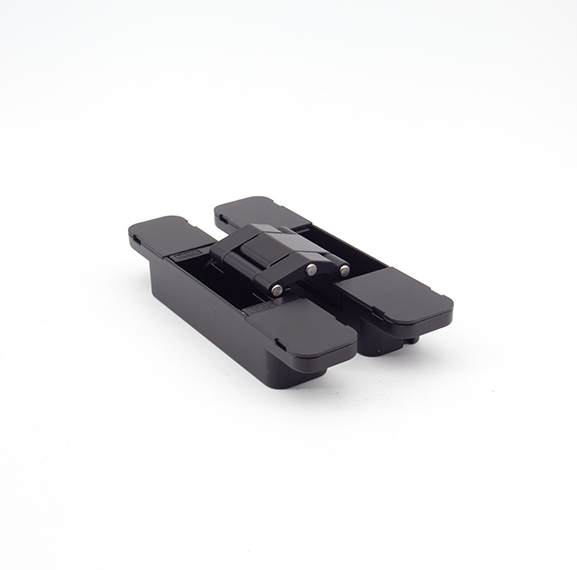

Sugatsune (E120) 3-Way Adjustable Concealed Door Hinge

                • 3-way adjustable
                • Hinge leaves seaparate for easy installation and removable
                • Cover caps hide all screw heads for clean appearances
              • WEIGHT - 380 G
              • WIDTH (MM) - 20
              • HEIGHT (MM) - 120
              • DIMENSIONS - 43.5 × 25 × 120 MM
              • KNUCKLES - 3
              • LOAD CAPACITY (KG/PAIR) - 30/2 PCS, 40/3 PCS
              • LOAD CAPACITY (PAIR) (LBS) - 66/2 PCS, 88/3 PCS
              • MAX. DOOR HEIGHT (INCH) - 94-1/2
              • MAX. DOOR HEIGHT (MM) - 2400
              • MAX. DOOR WIDTH (INCH) - 35-7/16
              • MAX. DOOR WIDTH (MM) - 900
              • MIN. DOOR THICKNESS (INCH) - 1-1/8
              • MIN. DOOR THICKNESS (MM) - 29
